This workflow will visualize the benchmarking of two sci-RNA-seqv3 data-set consisting of a large cohort of Four Core Genotypes (FCG) mice (FCG; 11.3 billion mate-pairs) and a smaller Danio Rerio cohort (490 million mate-pairs) in which additional nuclear oligo hashing barcodes were added.
library(dplyr)
library(patchwork)
source('misc_functions.R')
# Parallel options.
future::plan(strategy = future::multisession(workers = 10))
# Set seed.
base::set.seed(708813)
# Location of benchmarking logs.
files_benchmark <- list.files('~/DKFZ/odomLab/manuscript_scirocket/benchmarks/', full.names = T)cohorts <- readr::read_tsv('../config/testing_samplesheet.tsv', show_col_types = FALSE)
cohorts %>%
dplyr::group_by(experiment_name) %>%
dplyr::summarise(n = dplyr::n_distinct(sample_name), .groups = 'keep') %>%
dplyr::ungroup() %>%
dplyr::select(`Cohort` = experiment_name, `Total samples` = n) %>%
knitr::kable() %>%
kableExtra::kable_styling(bootstrap_options = "striped", full_width = FALSE)| Cohort | Total samples |
|---|---|
| sx42b | 48 |
| test_hashing | 1 |
Overview of cohorts
The runtime, IO and memory usage of experiments are logged using the Snakemake benchmarking suite. We now import the benchmarking logs of the two cohorts.
data_benchmark <- dplyr::bind_rows(future.apply::future_lapply(files_benchmark, function(x){
data <- readr::read_tsv(x, show_col_types = FALSE) %>%
dplyr::mutate(
step = gsub('_test_.*', '', basename(x)),
step = gsub('_zebra.*|_mouse.*', '', step),
step = gsub('_sx42b.*', '', step),
experiment = dplyr::if_else(grepl('sx42b|mouse', x), 'FCG', 'Zebrafish (Hashing)')
)
return(data)
}))
# Calc. mean + SE
data_benchmark <- data_benchmark %>%
dplyr::group_by(step, experiment) %>%
dplyr::summarise(
mean_m = mean(s / 60),
sd_m = sd(s / 60),
mean_io_in = mean(io_in / 1024),
sd_io_in = sd(io_in / 1024),
mean_io_out = mean(io_out / 1024),
sd_io_out = sd(io_out / 1024),
mean_max_rss = mean(max_rss / 1024),
sd_max_rss = sd(max_rss / 1024),
mean_mean_load = mean(mean_load / 100),
sd_mean_load = sd(mean_load / 100), .groups = 'keep'
) %>%
dplyr::mutate(
step = factor(step, levels = c('bcl2fastq', 'split_R1', 'split_R2', 'demultiplex_fastq_split', 'gather_demultiplexed_sequencing', 'gather_demultiplexed_samples', 'trim_fastp', 'generate_index_STAR', 'starSolo_align', 'sambamba_index', 'sci_dash')),
step = dplyr::recode_factor(
step,
bcl2fastq = 'Converting BCL (**bcl2fastq**)',
split_R1 = "Splitting R1 into chunks",
split_R2 = "Splitting R2 into chunks",
demultiplex_fastq_split = "Barcode demultiplexing (on chunks)",
gather_demultiplexed_sequencing = "Merging experiment-based files",
gather_demultiplexed_samples = "Merging sample-based files",
trim_fastp = "Trimming (**fastp**)",
generate_index_STAR = "Generating alignment index (**STAR**)",
starSolo_align = "Alignment and UMI counting (**STARSolo**)",
sambamba_index = "Generating BAM indexes (**sambamba**)",
sci_dash = "Generating interactive dashboard"
)
) %>%
dplyr::ungroup()generate_benchmarking_plot(data_benchmark %>% dplyr::filter(experiment == 'FCG'))
generate_benchmarking_plot(data_benchmark %>% dplyr::filter(experiment != 'FCG'), ylimits_runtime = c(0, 45), nudge_runtime = 2.5, nudge_io = 2.5, ylimits_maxio_read = c(0,100), ylimits_maxio_write = c(0, 100))

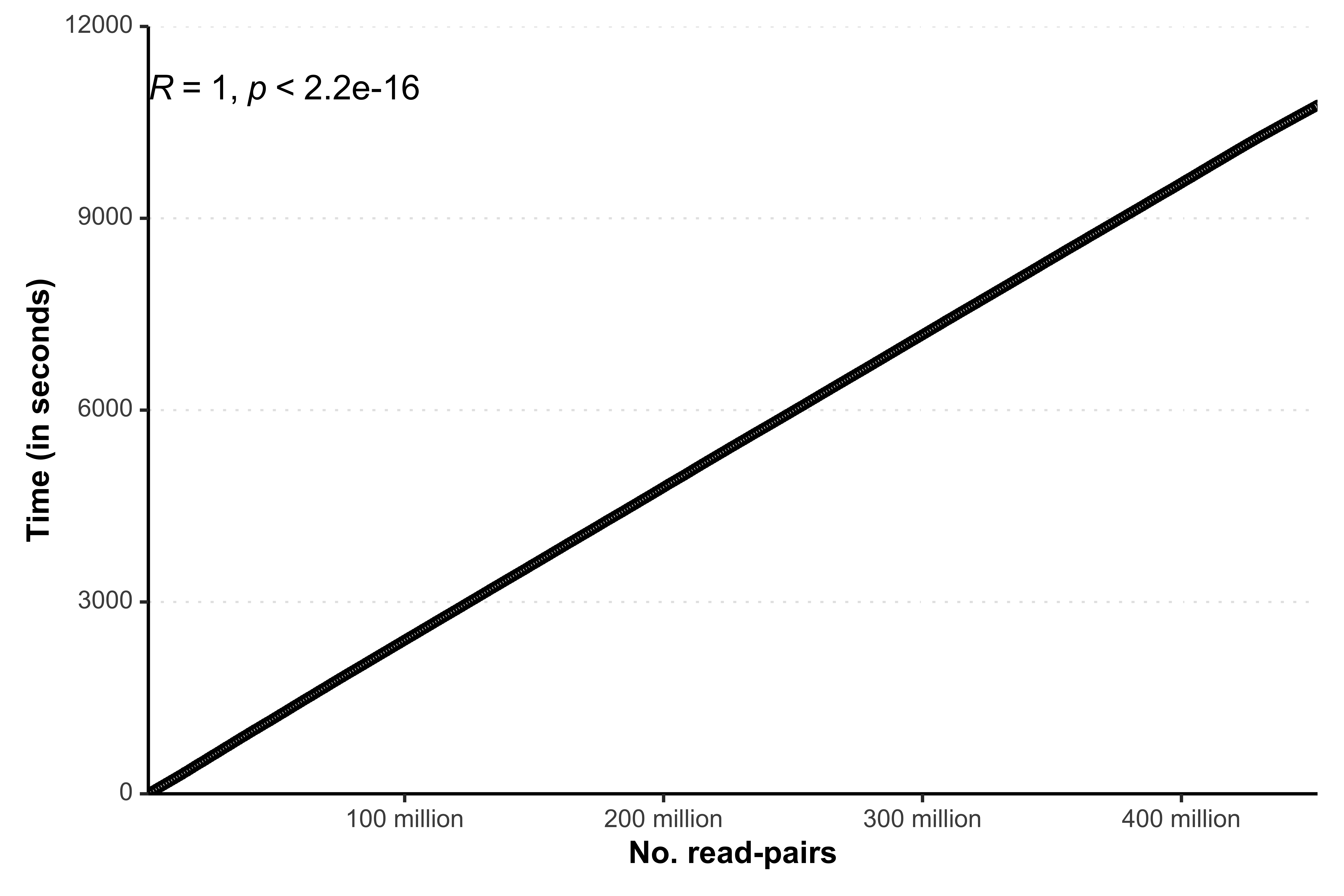

Using a single split chunk, we can determine the speed of de-multiplexing by checking the de-multiplexing time per 1M reads.
x <- readr::read_tsv('~/DKFZ/odomLab/manuscript_scirocket/logs/step2_demultiplexing_reads/demultiplex_fastq_split_sx42b_1-of-25.log', col_names = 'line', show_col_types = FALSE) %>%
dplyr::filter(grepl("INFO: Done:", line)) %>%
dplyr::mutate(
n_reads = as.integer(gsub(' read-pairs.*', '', gsub('.*INFO: Done: ', '', line))),
time = lubridate::as_datetime(gsub(' -.*', '', line))
)
x$time <- x$time - min(x$time)
ggplot2::ggplot(x, ggplot2::aes(x = n_reads, y = time)) +
ggplot2::geom_point(size = 1, shape = 21) +
ggplot2::scale_x_continuous(labels = scales::unit_format(suffix = ' million', scale = 0.000001), expand = c(0,0.01)) +
ggplot2::scale_y_continuous(limits = c(0, 12000), expand = c(0,0.01)) +
ggplot2::labs(x = 'No. read-pairs', y = 'Time (in seconds)') +
ggpubr::stat_cor(label.y = 11000, p.digits = 0, method = 'pearson', alternative = 'two.sided') +
theme_job
data_xl <- list('Demultiplexing' = cohorts, 'Benchmarking' = data_benchmark)
